Sunday, 25 February 2018

Swamp Dawg 6X6 part 1

The name of this project series is due to the use of  the use of Imex Jumbo Maxx Swamp Dawg tyres which I like the proportion of a lot, sadly no longer available. They are mounted to Monster Pirate wheels that have a 17mm hex. These are then mounted to Traxxas 17mm hubs modified to fit on the 6mm shaft of the Gear-motors, one for each wheel. Steering will be spin steer, having a separate  forward and reverse speed controller ( a Traxxas EVX2) for each side's three wheels.

This is not exactly a new project, it has been hanging around in the background since the motor per wheel test rig post way back in 2015. It had not progressed much since then as there were certain mechanical design issues that I couldn't see clear practical solutions to, until very recently.

One of the stumbling blocks was due to the length of the cheap gear-motors when attached to my simple rectangular profile aluminium swing arm design. That design, which I put to use in the Reverse Trike project,  uses a hose clamp arrangement to attach the motor to the end of an aluminium swing arm. Mounting the swing arm to the side of a chassis means that on compression of the suspension, the motor will foul the bottom of the chassis. One solution was to mount the swing arm out from the chassis so far that the motor no longer fouls. I wasn't happy with how this looked from an aesthetic and mechanical point of view. The alternative was to make cutouts in the chassis to allow the motors to swing into the vacant space. I couldn't see any simple way to do this until I happened across some parts for 3d printers on Banggood.com and then out of the blue a solution to the problem formed in my mind.

Essentially I found a simple way of mounting the swing arm pivots lower than the structural part of the chassis so when the arms swing up for full compression of the suspension the motors just clear the bottom of the chassis. I ordered the parts which were very inexpensive and waited for them to arrive in the post to see if it would work.

Here is the result so far.


The chassis is two lengths of 4mm thick aluminium angle which was actually a piece of aluminium channel which I cut down the middle. These are spaced apart with 10mm square aluminium rod tapped M4 and screwed together with button head cap screws. Onto these rails I bolted the parts from Banggood starting with 8mm rod mounts using the holes provided with m5 cap screws and nuts. The mounting holes for the cheap rod mounts were very inaccurately drilled, with a 1mm variation in hole centre spacing as well as being offset from the centre line You would hope that the manufacturers would be able to achieve better tolerances than shown on this sample of 6. I had to grind away a bit of the aluminium rails to fit some nuts on the inside as the holes ended up very close to the angle.

200mm lengths of 8mm rod ( it comes in that length and I didn't even need to cut it) is then mounted with a spacer of brass tube on the outside. These rods are the pivots for the swing arms and as a bonus considerably stiffen up the chassis structure.

The swing arms have two flanged bearings with an 8mm ID and 16mm OD fitted into the 16 mm holes drilled with a step drill in to the rectangular aluminium profiles. The swing arms are retained with 8mm collars that have a locking grub-screw. A small piece of shaped aluminium channel is pop riveted to the top of the arms to mount the shock which are Traxxas Summit or Revo shocks. The top of the shocks are mounted with 25mm M3 cap screws and an 8mm diameter aluminium spacer  drilled and cut to length on the mini lathe.
I have been experimenting with the spring weights and wont know for sure what I'll use until the body is completed and the electronics and battery are all in place.

You can also see the hose clamp motor mount arrangement bolted to the end of the arm which has a circular cut out in its end the same diameter as the motor. This was cut  very carefully with a hole saw in the drill press and then cleaned up with a file. The motors need to sit at 90 degrees to the arm or the they wont track straight.

Wires to the motors will be fed back into a hole in the swing arm (yet to be drilled) and come out the other end to be fed back into the chassis for connection to the speed controllers, one for each side as per the previously mentioned motor per wheel test rig post. I might add that the swing arm motor assemblies were built shortly after the test in 2015 and have sat around in a box since then, waiting for  that little spark of inspiration to progress. The position of the top shock mounting point was determined by moving it about to different positions and clamping it and testing for operation until a spot was found that gave the right amount of stiffness and compression. I did this originally with one swing arm mounted to a scrap of plywood, Once I mounted the swing arms to the chassis I moved the position around further until I was happy with the motion.

I am planning to build an under chassis cover that will hide all the mounting hardware leaving spaces for the motors to fold back into.

Next to be tackled was the design of the body. I've been toying with ideas for 6X6 vehicles for some years coming up with a number of designs over that time but never really finding one that exited me enough to start building. While running off 150 of the same part on the CNC machine at work recently, I doodled away on a bit of paper and came up with a thumbnail that I liked.

 I then took a photograph of the chassis and the wheels with my phone camera, threw that into photoshop and tried to come up with a side view. My painting skills are pretty dodgy at best but I managed to come up with an image that I thought fitted the chassis and wheels in good proportion along the lines suggested by the thumbnail.

  I then took that image into DraftSight and proceeded to draw up some lines and dimensions to start the build.

I then took this cad drawing and drew up onto paper full size the side view ready to cut some styrene, in this case 1.5mm thick. I chose the 1.5mm styrene over Foamed PVC in this case because for one I had a full sheet of it and the design is mostly flat sided or curved in only one dimension not curved in multiple dimensions like the Reverse trike project. It's not as heavy as 2mm styrene which I have used for a lot of previous projects and it's always a good idea to try to keep the weight down when making these vehicles wherever possible.

Here are some shots of the body structure under construction.

It starts of being rather flimsy at first but as the skin gets added the strength and rigidity increases.
Most of the edges get doublers to increase the gluing surface area and the bulkheads get small re-inforcing strips added to the inside of the skin for the same reason. There are only three bulkheads in the structure but I added some localised small buttresses in-between to help shore up the side panels and stop them flapping around while I beveled the edges to receive the bevel sheet which, as can be seen, is still to do. The cabin side wall is just temporarily stuck on with double sided tape to get an idea of its shape and proportion.

I dug out these small action figures ($3.00 from Target) which are 105mm tall making  them 1/17 scale if they represent the average height of 1800mm.  They could be a short 1/16 scale or a tall 1/18 scale as well. Anyway they seem about right for the size of the vehicle that I want to imply, generally pretty big.

 Dont forget that if you click on a picture it will display much larger on your screen.
Thanks for reading, more soon...

Sunday, 18 February 2018

Reverse Trike part 3

I've been continuing on with the trike project and have completed the construction of the exterior bodywork and added a rear mudguard,

The mudguard is made from 2mm foamed pvc sheet formed around a large diameter pvc pipe using a gentle application of a heat gun. The edges were doubled with strips of 2mm pvc and sanded round. The black bits are some 1mm styrene sheet superglued on with the aid roughing up the mating surfaces with coarse sandpaper.

The mudguard is held on to the swing arm by a bracket made from some aluminium angle cut and filed to shape and pop riveted to the top of the arm. The pvc mudguard is attached with three m3 cap screws  and lock-nuts with a washer on the inside bearing against the soft-ish pvc.

To protect the motor wires which are pretty exposed on the side of the swing arm I made a little guard from some pvc pipe and sheet superglued together in the usual fashion. It is reinforced with a fillet made from a hefty application of baking soda and thin superglue. This may still prove to be too fragile and something more robust will have to be made up. At the moment it is being temporarily held in place with double sided tape. I am thinking of using some double sided foam tape to affix it permanently once the swing arm is painted.

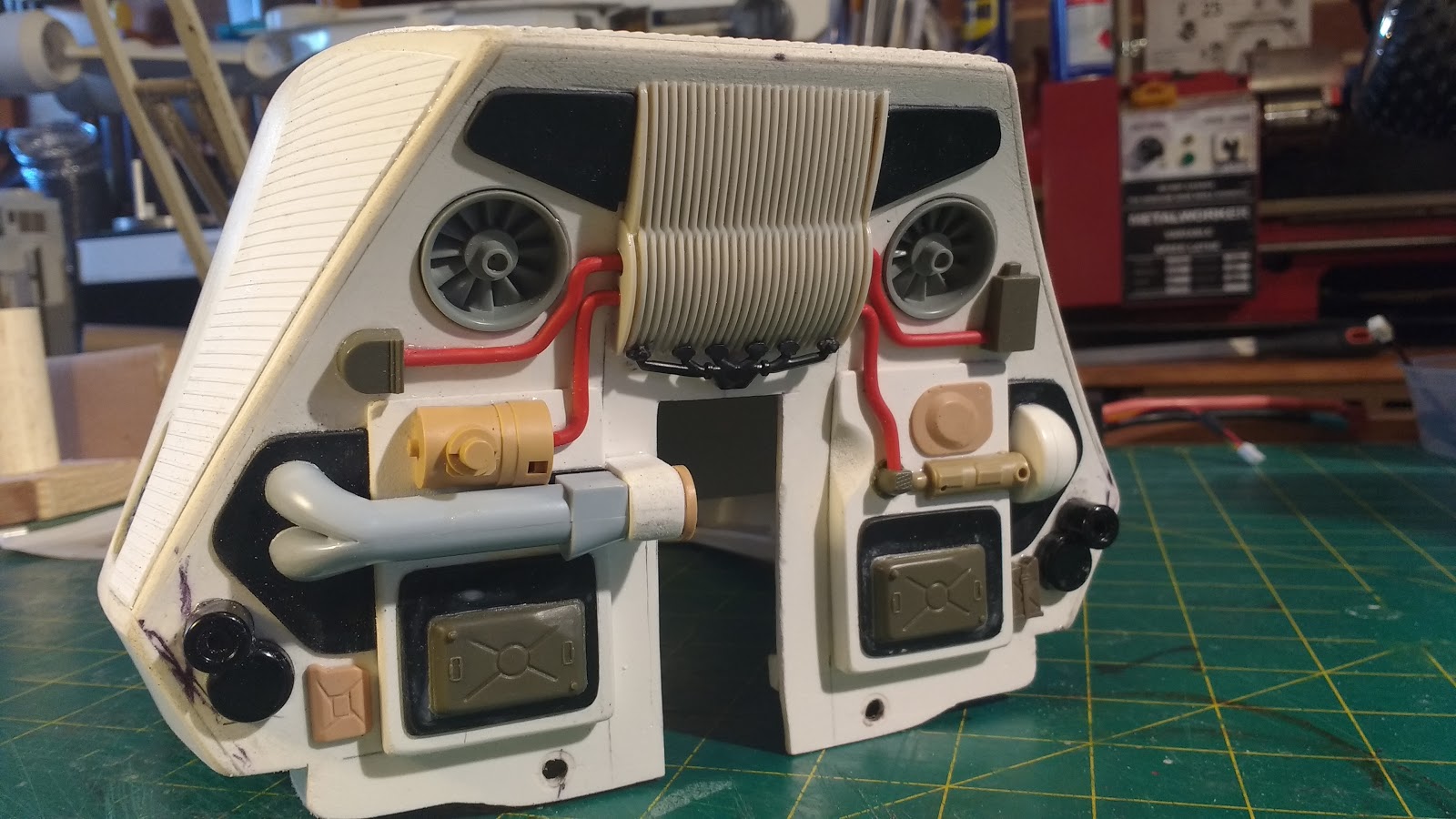

Because this is a sci fi model, it received the customary (perhaps even compulsory) kit part detailing, in this case on the rear wall.

Most of this is tucked away in between the body and the rear mudguard. The radiator like shape is a chopped up part of the top of the wing of a Klingon bird of prey model kit, which I got in an ice-cream container of parts I was given by a very generous donor. The red piping is some single core insulated copper wire fixed with a couple of drops of thin super-glue.

The nose also got a kit part and two buttons from an old computer keyboard.

A little inset panel on the sides had a couple of kit parts that could look like recharge hatches. Some evergreen siding adorns the sides and roof where an air vent was made up and added along with a small flat dome kit part.

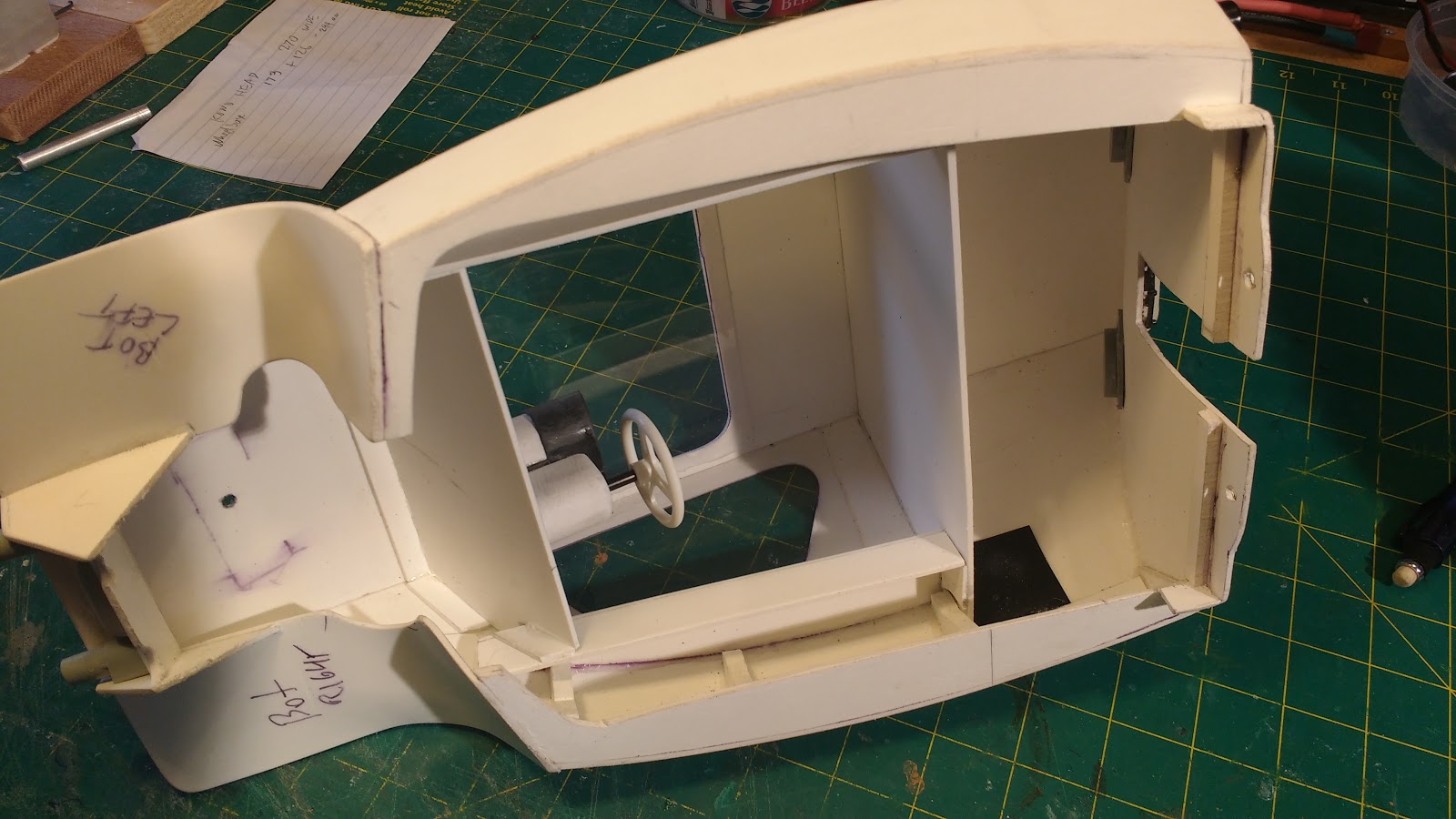

 I have also made a start on the interior with some panels to help hide all the RC electronics and a small instrument panel steering wheel console.

 The front tyres are a bit of a curiosity. They are Schumacher grass racing 2.2 inch truck tyres. I acquired them many years ago when I bough an old Losi truck from a guy from the UK when I used to race trucks very briefly in the mid nineties. They are never seen in Australia as here offroad racing is more usually held on clay or brick dust tracks. They are made from very hard rubber. As usual they've been sitting around in a box since then and they fit these Proline Agitator Chrome 2.2" wheels Ive also had for years which are molded to take bearings rather than a hex for the front end of a 2WD Jato.

All I've got to do now is finish the interior and then it's on to paint.


More soon...

Saturday, 10 February 2018

Reverse Trike Part 2

Ive been beavering away on this project a little bit every day consequently there has been some progress on the body.

I started to construct the part of body where it meets the chassis. Using cardboard I made up some templates that closely fit around the Jato chassis and then cut the final shapes in more 2mm Foamalux (Foamed PVC sheet). Whilst the body was in position on the chassis I made up small gussets that linked the bottom sheet to the rest of the body and then proceeded to add doublers to all the edges to give a larger surface area for gluing on the lower sides. The supporting edges were then sanded with a sanding stick with 80 grit wet and dry, to the correct profile. Cardboard was once again employed to rough out the curved shapes required and transferred to the pvc sheet with a generous allowance to counter slippage while super gluing and then sanded back flush to finish.

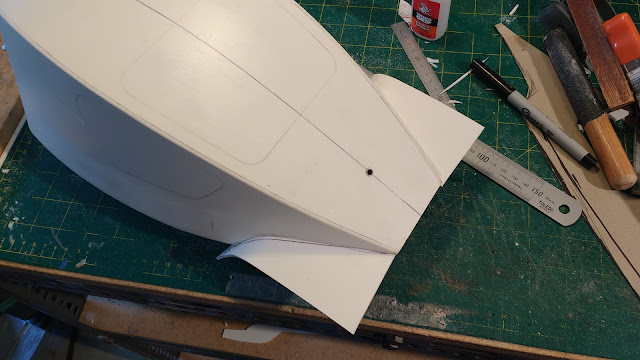

I then made up some front mudguards in much the same way, leaving lots of extra material to be shaped once the glue has set which isn't very long using a spray of superglue accelerator. The foamed PVC can be coaxed into bends by hand and also by the judicious application of a hot air gun. The mudguard panels were kept level whilst gluing by clamping them to a piece of wood across the front.

Next I cut out a template out of 1mm styrene to scribe around the door opening shape using a scriber. The foamed PVC sheet takes indentation well and it leaves a permanent groove. I used the same template to scribe an outline for the side door window openings. I first used a large step drill to make some large holes in the windows near the corners (step drills tear through this material like crazy), then using my trusty olfa snapper knife joined the holes carefully punching out the rough opening.

 The windows having been sanded to the final outline were filled in with thin sheet polycarbonate after first roughing the gluing surfaces with coarse sandpaper to enable the superglue to bite. To get the radii of the window openings clean and accurate I have a few bits of dowel of different diameters with sandpaper stuck around the circumference with double sided tape to use as round sanding sticks.
In the picture below you can also see a couple of semi circular cutouts in the mudguards for clearance where the front shocks pass through.

 I moved the driver figure forward as he was too far back once the windows were cut. His rear mounting post had to be moved and a little plate made for the front post to meet the screw hole in the figure. I then added a bulkhead in the body behind him.

This is where I am at so far and I feel it is coming together well. My motivation to keep on with it is high so I am hoping to carry this project through to completion...

More soon...
