Toy Bash Truck part 7

Part 1, Part 2, Part3, Part4, Part 5, Part 6

The model was masked up and sprayed with orange car paint from a spray can. The masking was reversed and the detail areas were sprayed with a "sandable" car primer which is a darker grey than the normal car primer. I'm not sure what the difference is, other than the shade of grey, as primer generally is usually easily sandable.

I also masked up and sprayed some white primer markings on the sides and added some old decals from random model kits.

The liquid latex masking (applied earlier in previous post) was peeled off leaving chipped paint revealing the original red primer and silver metal scrapes from the paint pen.

After the paint has been allowed to dry for a at least a day ( 2 days or more is better) I start the application of "poo juice", a roughly five to one mix of methylated spirits ( alcohol) and Tamiya flat black mixed in a jar. Essentially this is a wash that is flowed onto the surface into all the vents, grooves, depressions, edges, lumps etc. Then metho dampened rag is used to wipe it off from the high spots leaving it in the low. The rag is wiped in the direction that grime would run and flow leaving grubby streaks. It is essential for this method to work that the underlying paint is not dissolved by alcohol, so any water based hobby paint such as Tamiya is not suitable. Acrylic car paints and primers are fine, and enamels such as Humbrol will work given sufficient time to dry.

I have seen Randy Cooper on You tube demonstrating his technique using a water based wash on a wet model getting similar visual results. I find that for me that the methylated spirits based wash flows along edges better with a capillary action that is more effective than I have been able to get using a grime wash based on water.

After the poo juice wash has dried, (it dries pretty fast) I then dry brush white students acrylic paint using a stiff flat oil paint brush onto all the raised spots and edges. The student acrylic is a cheap artists acrylic that is not as densely opaque as a quality artists acrylic so builds up slowly onto the models edges with a pleasing lightening of the underlying value. If you make a mistake the metho dampened rag will easily remove the white for another go.

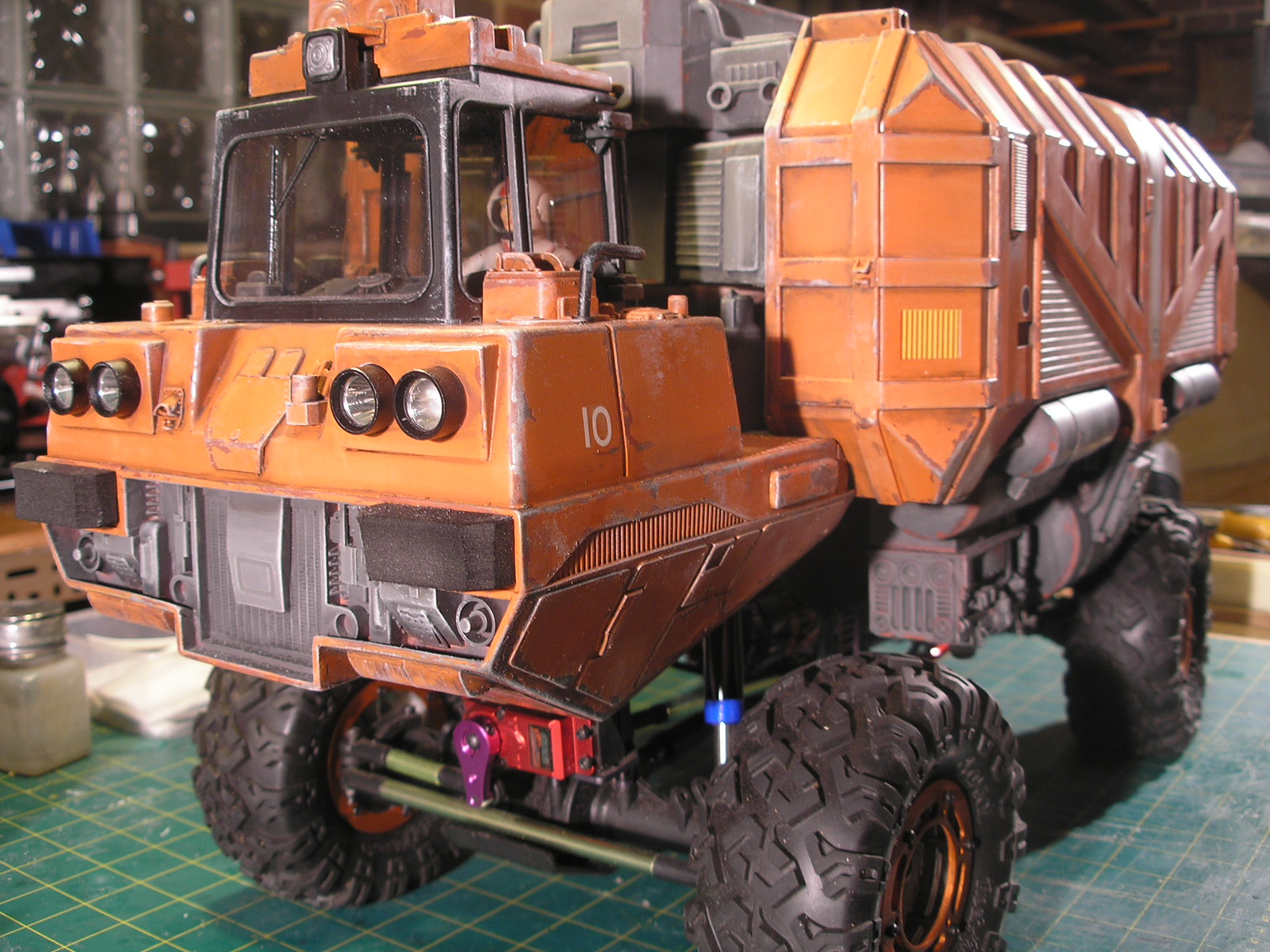

To people used to subtle pastel shaded weathering on 1/35 scale military models, the result to the eye may seem ludicrously over the top, but in my experience you really have to exaggerate the weathering for the camera to see any of it.

After looking at the photos I realise the chassis needs a bit of weathering to tone down all the colorful anodising on display. More than likely a good run on some dusty dirt tracks will naturally take care of that.

A momentous event for this blog, as a project has actually come to completion and for me personally as it is the first Sci-fi model I have completed in maybe 20 years. I hope there will be plenty more to come.

Thanks for reading.

Toy Bash Truck part 6

Part 1, Part 2, Part3, Part4, Part 5, Part 7

Some work has been done on the cockpit of the truck. In fact the whole model has been painted and weathered but that will follow in a subsequent post as I haven't taken any photographs of that as yet.

I made up a helmet for the 1/16 scale Bruder toys driver figure. It possibly a little big but that's what he's getting.

It was made in two halves joined down the middle by pressing a half dome shape into heated 1mm styrene. To heat the plastic I used my Bosch heat gun which is designed to strip paint among other things. It looks like a hairdryer but it puts out industrial grade heat. You would not want to mix up the two.

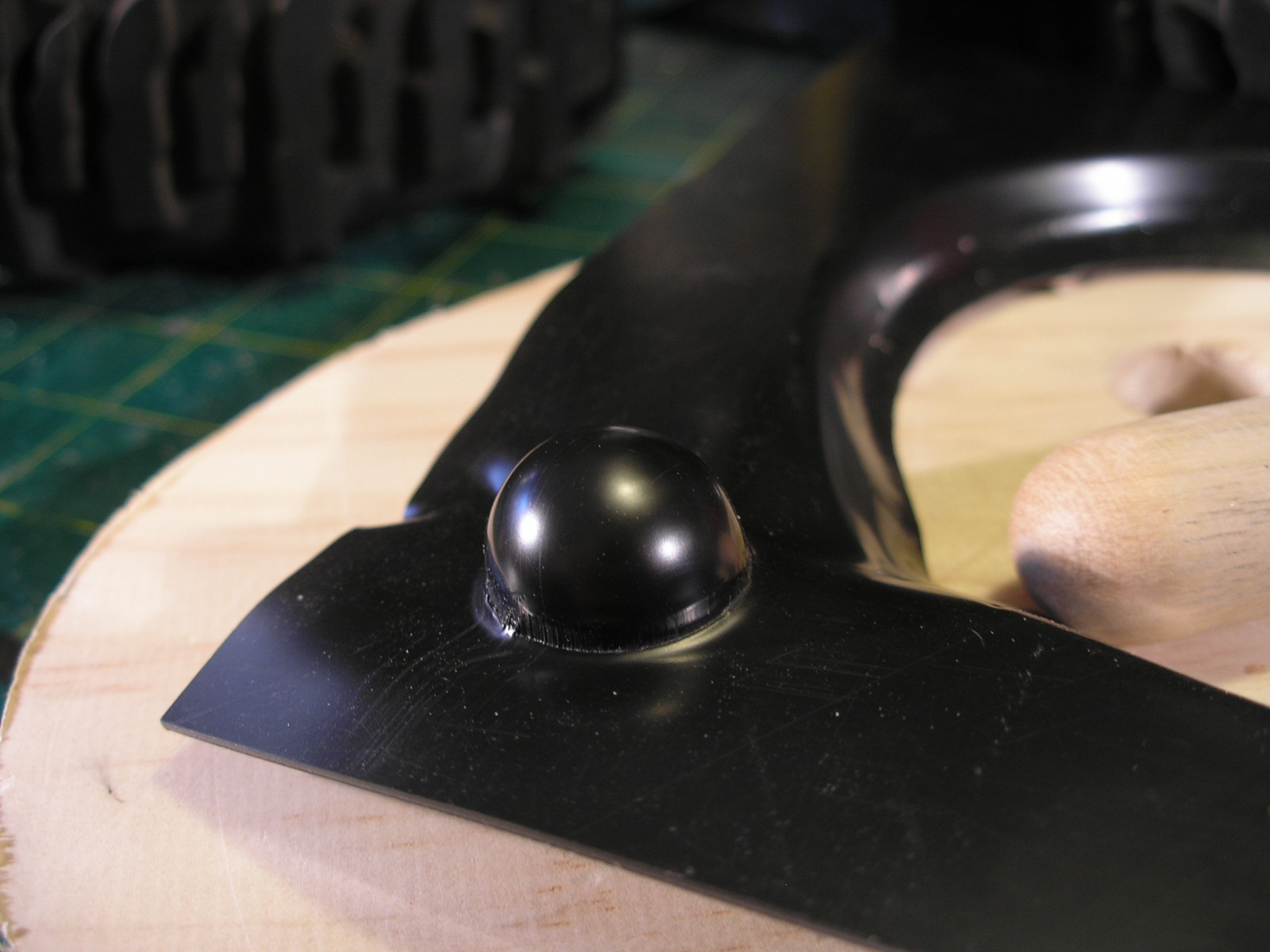

I made a domed ended bit of broom stick and pressed that into a hole in a piece of wood that was slightly larger. You can see the stick, hole and result below.

The two plastic domes were sawn off with a razor saw, sanded flat and joined with my usual methylene chloride solvent. A dremel was then used along with a sharp olfa blade to cut away the hole for the neck and face. I used a couple more presses of the 1mm plastic to make some side discs and added a strip of 0.5mm styrene down the join. I also added some pieces of closed cell foam as padding on the inner sides which also makes it stay on his head.
Still needs a bit of sanding and then painting to finish.

To cover up the rolled up sleeves molding on the drivers arms I used some heat shrink tubing, with a smaller piece as some sort of cuffs around his wrists. I also put a larger piece around his neck. You can see a bit of filler as yet un-sanded in the v neck of his shirt.  A few Drops of thin super glue has been flowed into his arm joints to fix them in position. Eventually he will be painted to look more like  he's wearing a jump suit with gloves.

The chassis has been disassembled so that it could be painted with flat black. I always use a Rust guard epoxy style spray paint for any aluminium parts as it sticks very well without flaking off. A couple of lightish coats are sprayed on without any primer. It takes 24 hours to dry fully but a couple of extra days does no harm before reassembly with scratchy tools. Here is the chassis hanging up on a wire hook.

On the shelf  behind the chassis are a couple of my old spaceship models readers of this blog will be familiar with, built many many years ago.

More soon...

Make your own foams

I like Imex Jumbo tyres (except for the jumbo Kongs) as they are chunky and nicely proportioned height to width. They are discontinued so are getting pretty impossible to find. In fact wide tyres of any sort seem to have gone out of fashion at the moment, everybody is doing narrow.

I had a pair of the Jumbo Swamp Dawgs but a pair is pretty useless, so I have had a permanent search on ebay for some more. Finally a set of four previously mounted but apparently "unused" turned up and I was the only bidder. With the Aussie dollar being so crap these days and the massively expensive postage costs on top they cost an arm and a leg to get hold of. Eventually they arrived and I was pretty disappointed that they didn't come with any foams. The seller listed them as "ready to mount to the rim of your choice" no mention of a lack of foams. When I queried this he claimed he used to use them for rock crawling without foams ( but hang on aren't these unused). Replacement foams are non-existant and I need them to support the weight of a hefty Sci Fi vehicle so the only option was to make some foams to fit.

 I happened to have a chunk of upholstery foam left over from restoring the seat of a small motorbike many years ago which was exactly the right thickness. I measured up a foam from the new pair I had and made a cardboard template to trace around with a fine point sharpie onto the foam.

The first trick is to cut the hole in the donut shape. To do this you need a drill press and a hole saw with the center drill bit removed from the arbor. The problem is that the hole saw is much shallower than the depth I need to cut so I slowly lower it into the foam, stop the drill press, peel out the foam and then saw a bit more out etc until the full depth is achieved. The hole saw goes through foam very easily and makes a relatively neat cut. The drill has to be removed as it will catch on the foam and spin it out of your hands.

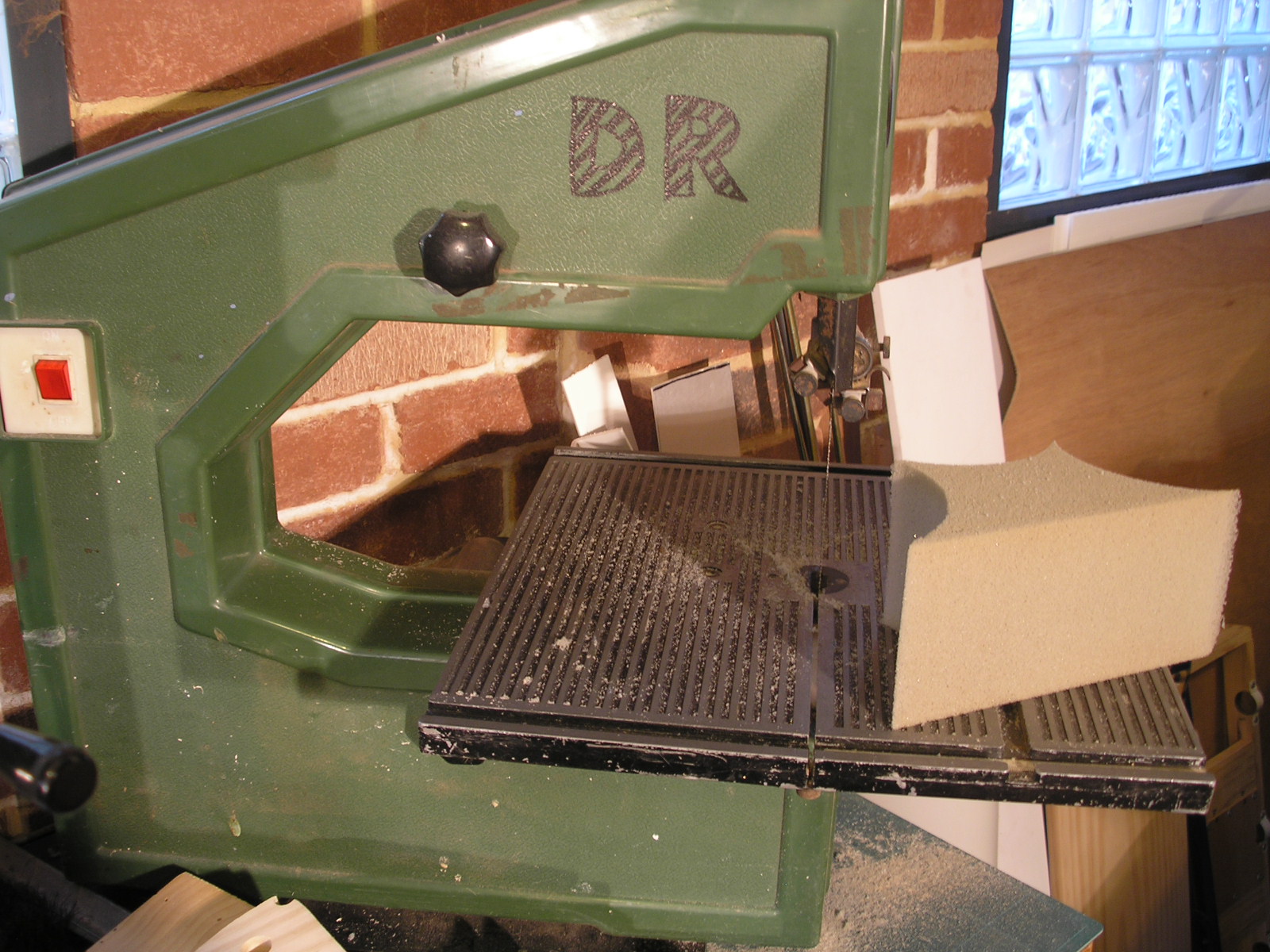

The outside diameter is cut on the bandsaw. Again foam is easily cut on a bandsaw, the denser the foam the better.

When measuring up for the template allow a few millimeters extra on the diameter and a few less on the inside diameter so it grips onto your wheel. As it happens for these 3.2 inch Imex jumbo tyres the hole saw diameter I used for the ID was 86mm or for those still in the living in the dark ages 3 and 3/8 inches.

The other issue with the ebay tyres was the left over chrome plating and super glue still stuck to the rims. I didn't use anything fancy here, no acetone or oven heating, I just used some coarse sandpaper and sanded it off. Worked fine, removed the offending marks of the previous owner easily without any effect to the rubber.

This method can be used to make any sized foams you like and with the right holesaws even dual density foams if you want to get tricky.

Although you cant find the Imex 3.2" rims any more you can still get OFNA monster Pirate rims which fit and are even available in a 17mm hex which is what I will be getting for these tyres for a 6X6 project some time in the future.

More soon...

Bulk Cargo Lander Part 1

While waiting for the weather to improve to complete the painting of the Toy bash Truck project, I started another project. This was inspired by a charity shop toy find namely 2 Crayola colour explosion toys. They consist of a motorised base that a clear plastic dome sits on top turned by a gear ring. You are supposed to draw on the dome and an interior  clear flat board with UV glow markers. There is a series of purple UV Leds in the base that shine up through the edge of the dome and the board and make the marker scribblings glow, all very psychedelic but very poorly reviewed, apparently kids get bored of it pretty quick. I saw great possibilities in the largish domes however and picked them up for $3.00 each. Here you can see I have already cut one of the domes in half with a razor saw following a line marked out with masking tape.

The half dome shape brought to mind a spaceship from the Dan Dare comic, the Bulk carrier.



First of all I drew up a rough thumbnail in my sketchbook for what I had in mind, with a couple of alternative engine layouts.

Along with the Crayola domes I dug through my crate of plastic shapes and pulled out a set of 4 acrylic wineglasses ( picked up a year ago on special at Target for $4.00) and  two sets of measuring spoons ( also purchased more than a year ago from Spotlight or as I like to call it SpotShite) made from polystyrene. The spoons come in a set of 4 different sizes. You nearly always need multiples of the same shape for sci fi models so I always buy at least 2 of a single item. When I am out shopping I am always looking out for interesting shapes made from the right sort of plastic, namely Acrylic, Styrene or ABS. Its getting harder to find these days as more stuff which used to be styrene or ABS is now made from polyethylene and polypropylene which in my view are useless ( unless used as a master for a mold to make out of resin of some kind) to the model maker as they can't be reliably glued, sanded, scribed, fillered or painted.

I made up a frame from 19mm plywood, somewhat overkill in thickness but I had a piece lying around. I used the half dome to trace around for the shape of the horizontal frames, removing the thickness of the plastic.The vertical frame shapes were drawn up in CAD using Draft Sight and printed them out full size and using UHU stick glue affixed on the plywood for cutting out on the band saw and jigsaw for the interior holes. 3/8 inch thread furniture leg mounts were employed as mounting points for the model.

The wine glasses had their bases cut off and very carefully shortened by parting off in the mini lathe.
The cut off rings gets employed as the engine bell mounts with a disk of 2mm styrene glued inside. Short lengths of Evergreen strip are glued in side to re-inforce the disks to stop them being pushed inward. The stem of the glasses was also carefully drilled out in the lathe to allow the passing of the wire from some 2 pin down light connectors which I then stuck inside with some black silicon. I used a led bi-pin lamp to hold the ceramic connectors in position until the silicon set overnight.


These LED down lights are not cheap but they use very little power and most importantly do not reach the plastic melting temperatures that Halogen down lights achieve in seconds. The lamp you see above was a spare I had from my bicycle light that I built. I purchased a 4 pack of the cheapest ones I could find for $25.00 and they are of a different internal configuration. Instead of the three distinct LED cells you can see in the test lamp above these have an arrangement of many surface mount LEDs inside which actually makes for a more even engine glow. See new lamp below.



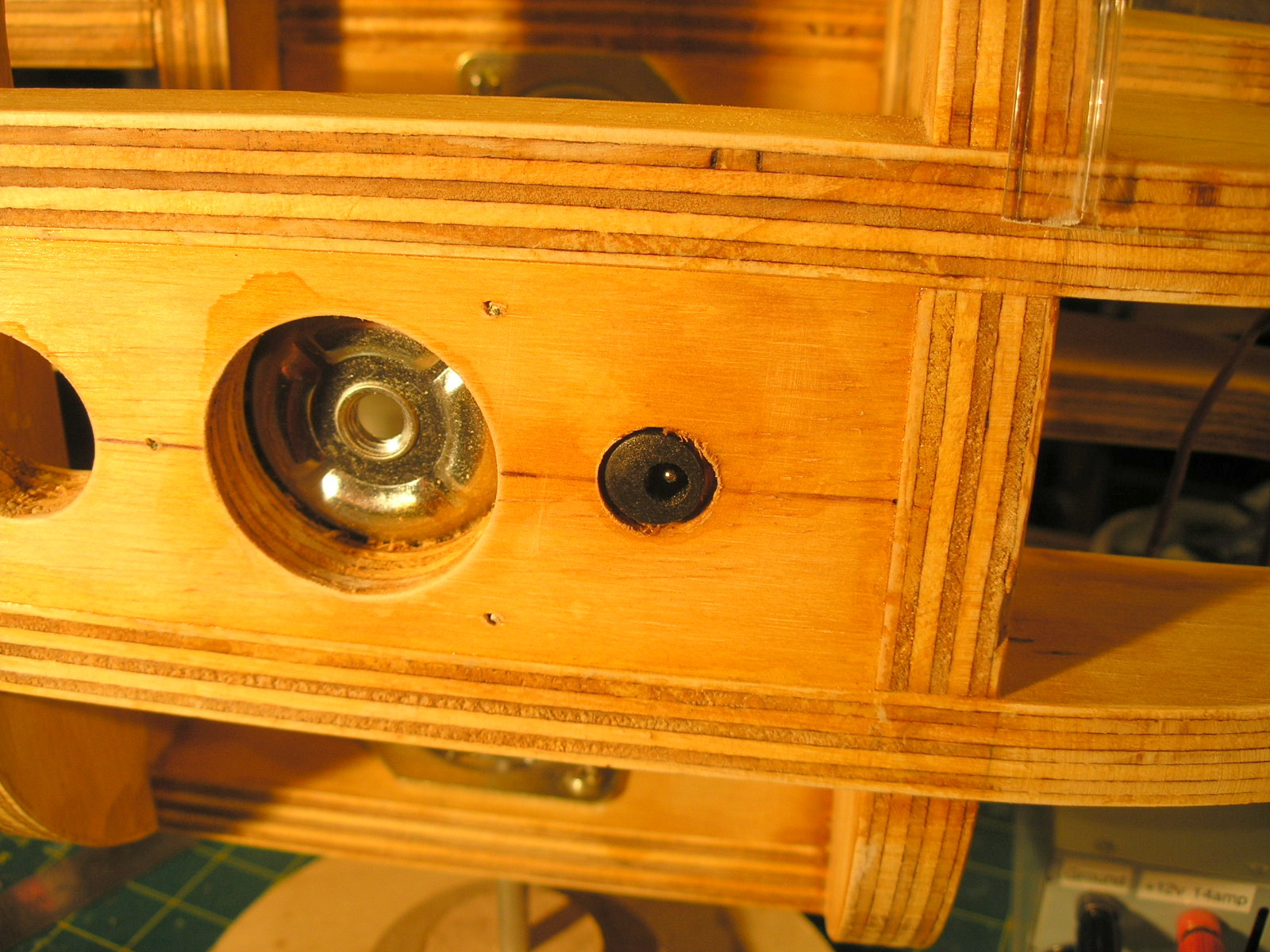

Here is the ceramic bi-pin connector siliconed into position inside the engine bell.  There is a spacer made from a ring of evergreen tubing behind the ceramic connector buried in the silicone adhesive. It raises the connector from the bottom of the glass so that it sits at the correct height to mate with the lamp pins.

A long 3/8 " cup head bolt and a couple of scrap round bits of wood are assembled to make a work stand to support the model during construction. The frames were glued together and the domes and the acrylic wineglass engine bells were tried out in position.

Below you can see the original test lamp in position and then switched on. Works a treat.



To get juice to the lighting I am installing some 2.5mm DC power connectors at the mount positions. Originally I set up 6 mount points however I am debating whether to abandon the front and rear mounts altogether as there is no convenient place to put the power connectors.

I have to confess I have a very strange quirk, which is always attempting to construct my models with features conducive to filming.
I guess its a habit left over from the very short, long since past period as a VFX model maker. When I was much younger I had many ideas for short films and built many models for them but found in the end I never made the films, I just built the models
The chances of any the models actually getting filmed is pretty slim... but still I persist.

One of the complexities of using compound curved objects is that flat plate panel details don't confirm to the surface very well. For this reason I pressed some heated 1mm styrene held in a wooden frame, over the shapes to later cut up into panels. At first I tried a round frame pressing it over the full dome but it was quite difficult to get the plastic to stretch that far so I made a side ways frame and pressed it over the half dome. This is a large area for my heat gum to effectively heat evenly and is about as large as is possible to attempt. A proper vac former would be ideal and I am going to have to build one... one day.
When vac forming parts for sci fi models it is pretty common to pull a skin for the hull shape and then after cutting the shape free from the surrounding plastic returning it to the buck and pulling another thinner sheet over that just for the panel detailing. Everything then fits together nicely.

To add a bit more interest to the engine bells I decided to scribe some lines around the ends. I screwed an OLFA plastic cutter blade to some scrap plywood and rotated the bells against it. Then raised up the blade on some scrap plywood packers and scribed the next line and so on.

Not particularly even spacing I'll admit, I should have used more accurate spacing material, but its there now and better than nothing.

As this is a Lander it needs some landing pads of some sort. I found these cool little sprung Oleo struts from HobbyKing. They were only $20.00. I couldn't make 'em myself for that. Anyway the wheels will be removed and replaced with some pads. The struts are designed to clamp with two grub screws to a 3mm rod. I removed the grub screws and tapped the ends M4. The front strut is the same size as the rears, just the wheels are smaller. It is mounted to a bit of aluminium angle screwed to the front wooden bulkhead. The rears are mounted to an aluminium strap bolted with two M6 bolts and aluminium tube spacers sitting on 1/4" mudguard washers into M6 t-lock nuts embedded into the plywood frame.

The springs in the struts are pretty stiff and easily support the weight of the model so far with just a small amount of compression.

Eagle eyed readers will note that I penciled in 1/35th scale on my thumbnail. After holding up a 1/35 scale figure to the cockpit area I decided that 1/48th scale would be more suitable so got a 1/48 scale figure kit to eventually populate the cockpit.

I wired up the engine lights and the power connectors an then started on skinning the frame with some 2mm styrene. The roughened with coarse sandpaper styrene was superglued to the wooden structure.
The top rear half dome was adhered in the same way. The other half domes I have elected to screw on with small Phillips head wood screws to allow access to the interior should any adjustment or repair need to be carried out at a later date. Hopefully the Phillips heads should get lost in the rest of the surface detailing. If not a small sticker painted the same as the rest of the hull, can be placed over each one which can then be removed to provide access.

The engine mounts are fared in with some 75mm PVC storm pipe cut and sanded to fit. Some 2mm styrene and some filler will be required here as well. You can also see the spoon blisters added as well. It was quite difficult to figure out where to put the holes accurately for the rear landing struts. I have found that accurate measurements still do not guarantee exact placement and some degree of "fitting" is always required. I started drilling a small hole where calculated it should go and then sighting through the hole to see how far out it is. Then using a rat tail file gradually shifting the hole over in the direction it needs to go and finishing up with a tapered reamer or a step drill to get it round again. Some detail will eventually go around the area to disguise any errors if any remain.

The intention is to add lifting nozzles of some sort to the front and rear blisters to make good the Lander aspect of the design.

That's it so far,
more soon...
